Fabtech Shock – Dirt Logic FTS801262P

Fabtech 11-19 GM 2500HD/3500HD 2WD/4WD Front Dirt Logic 2.25 Reservoir Shock Aborber – Passenger

ShkAbsrbr

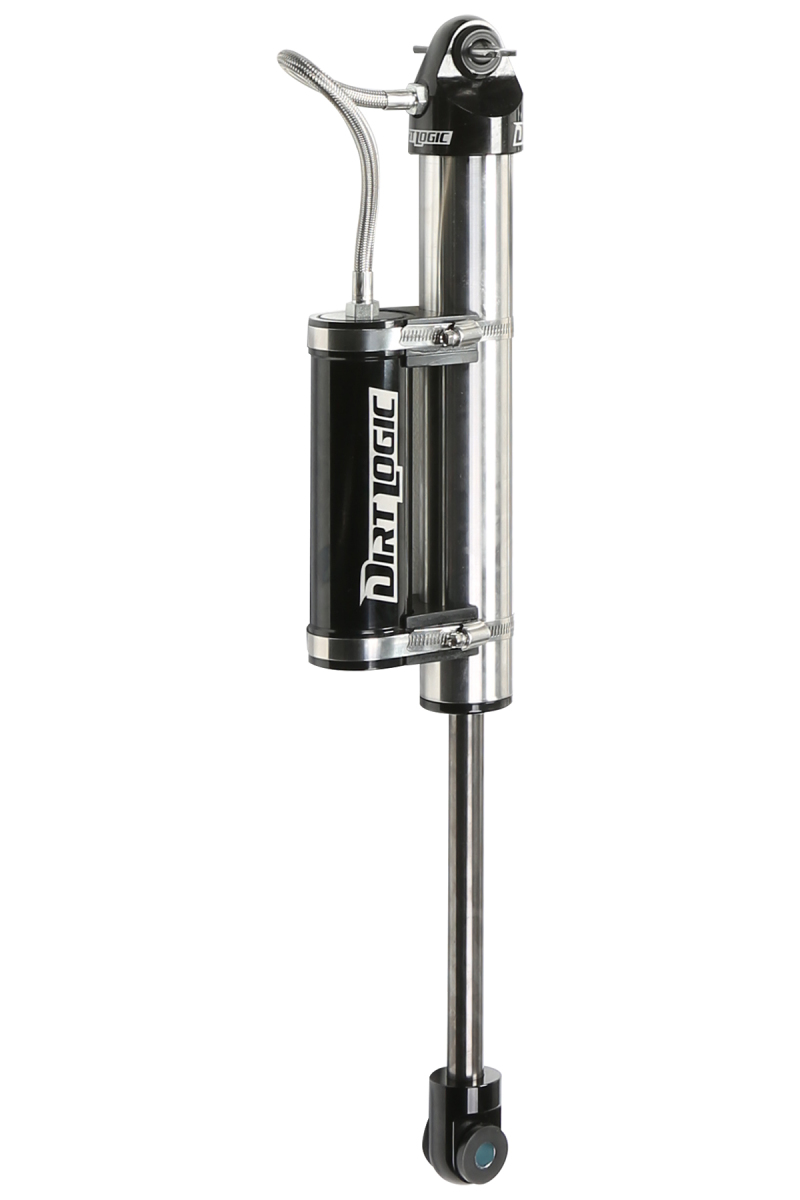

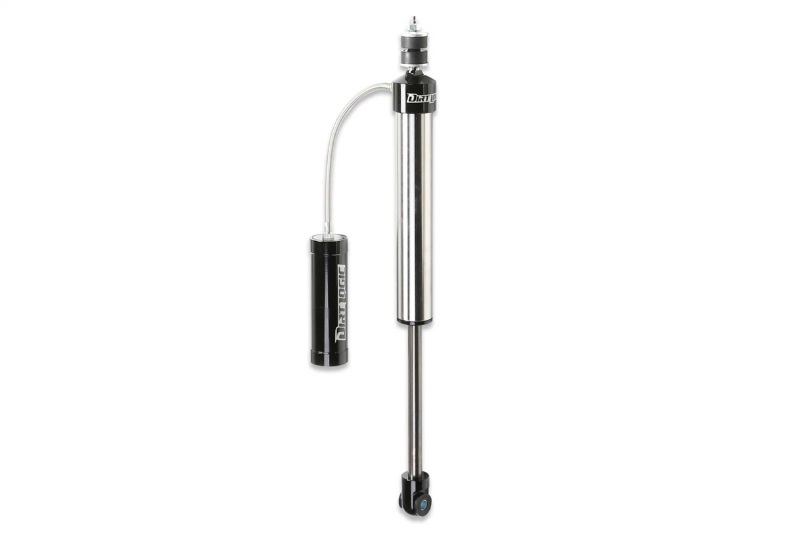

Dirt Logic 2.25 Resi Shock. Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping. Features: 2.25″ OD Stainless Steel Body. 2.0″ OD Billet Aluminum Piston. 7/8″ NitroSteel BlackPiston Rod. Polyurethane Mounting Ends. 2.25″ OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose. Extended Length – E23.30. Collasped Length – C19.02. Stroke Length – S4.28. Top Mount – S38. Bottom Mount – EB1.

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
