Fabtech Ultimate Kit Component Box K1064

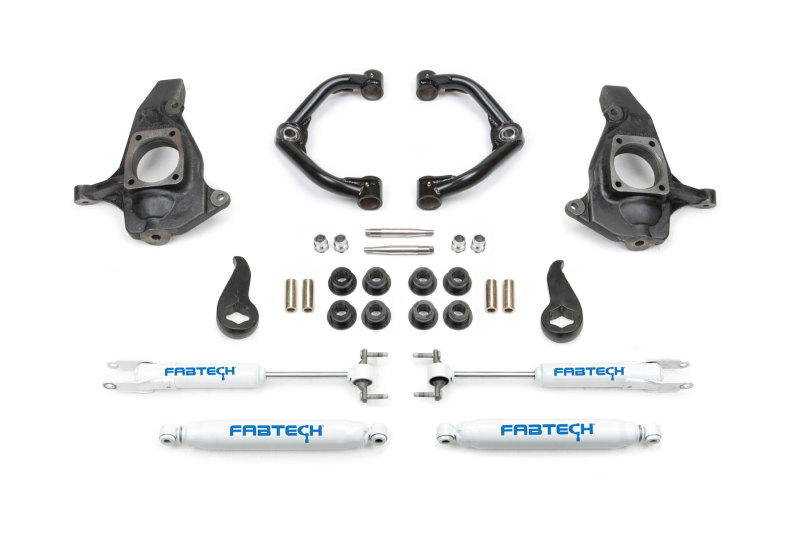

Fabtech 11-19 GM C/K2500HD/3500HD 4in Ultimate System w/Uniball UCA & Perf. Shocks

3.5″ ULTIMATE SYS W/

LftKt-Suspw/Shock

The 4” Ultimate System is available with our Uniball Upper Control Arms that feature .120” wall 4130 Chromoly tubing with a 1.50” OD 1” FK Stainless PTFE Uniballs for 9” of front wheel travel. The system also includes heavy duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind. The system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1” rear block kit is available. Uniball Upper Control Arms are available separately as an upgrade to stock, previously installed Fabtech’suspensions or other aftermarket suspension systems.

Obtain increased wheel travel with a mild lift height with these heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25 OD, .120 wall thick chromoly tube construction with 1 diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCAs have been designed to work in conjunction with Fabtechs Dirt Logic 2.5 Coilover shocks providing 10 of wheel travel for a complete front suspension system upgrade. The vehicles offroad suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25s.
