Fabtech UCA Kit Component Box K1062

Fabtech 07-18 GM K1500 4in Uniball UCA System w/Rear Perf. Shocks

3.5″ UNIBALL UCA SYS

3.5in. UNIBALL UCA S

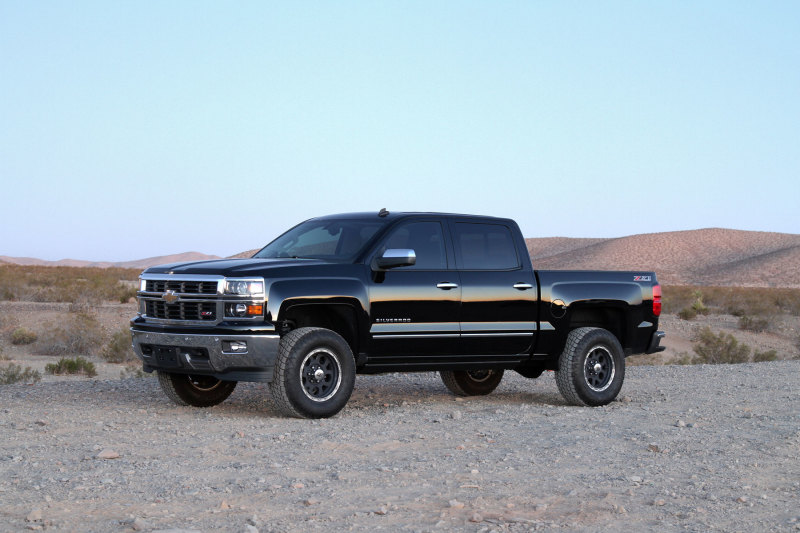

This system offers a mild lift height with easy installation for clearance of 33 tall tires on 2014 C/K1500s w/ factory Steel suspension. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120 wall 4130 Chromoly tubing with a 1.50 OD and 1 FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2 rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping.

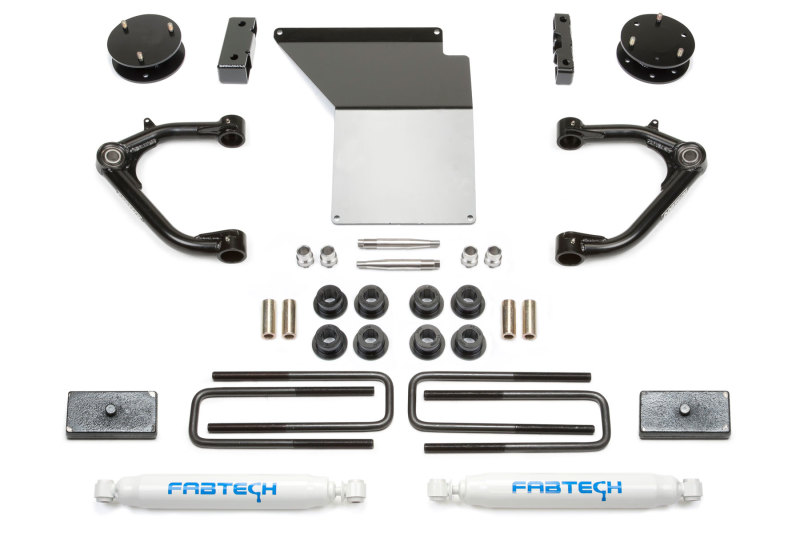

As an upgrade to our popular 4″ System we offer the system with our Uniball Upper Control Arms. The Uniball Upper Control Arms feature .120″ wall 4130 Chromoly tubing with a 1.50″ OD and 1″ FK Stainless PTFE Uniballs for unsurpassed strength. The system also includes front differential drop brackets, a 1/4″ thick steel skid diff plate along with 1 1/2″ rear lift block and u-bolts. The 4″ System utilizes the stock front Coilover shocks with upper spacers along with rear Performance Shocks. Uniball Upper Control Arms are available separately as an upgrade to stock, previously installed Fabtech’suspensions or other aftermarket suspension systems.
