Fabtech UCA Kit Component Box FTS26073

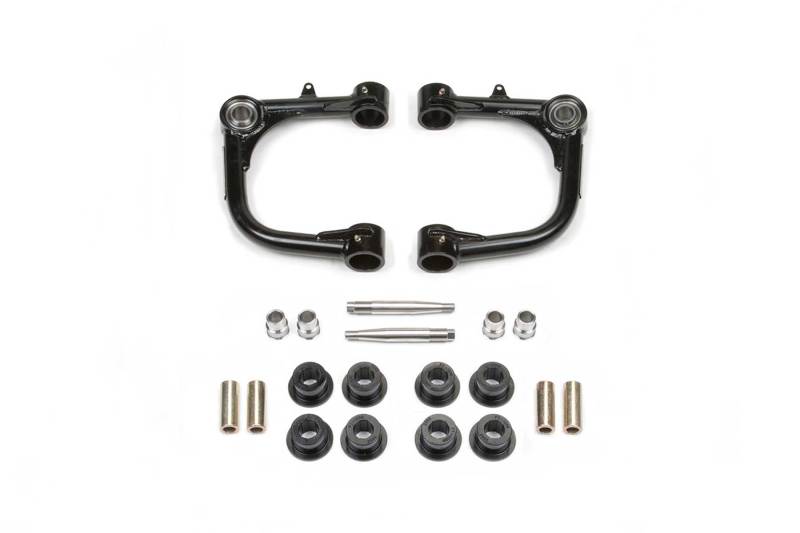

Fabtech 15-19 Toyota Tacoma 2WD/4WD 6 Lug 3in Uniball Upper Control Arm Kit

0-6″ TACOMA UNIBALL

CntrlArmKit

2015-19 Toyota Tacoma 2WD/4WD 6 Lug – Fits 0-6″ Lifts. Fabtech’s Uniball Upper Control Arms provide increased strength to the front suspension by replacing the stock ball joint upper arms that can become worn and eventually fail under aggressive offroad use. These heavy duty upper arms are designed for longevity in rugged offroad conditions. They also feature additional caster compared to stock upper arms for superior on road use with oversized tires. The top quality construction of these arms include .120″ wall 1.250″ OD 4130 Chromoly tubing and American made 1″ FK Stainless PTFE lined Uniballs. The 17-4 Stainless Steel heat treated Uniball pins fit into the factory ball joint tapers without modification to the spindle for easy return to stock feature. Fabtech uses 17-4 Stainless steel for the misalignments that provide proper clearance of the 1″ Uniballs throughout the travel range. On the frame side of the upper arms, there are quality urethane bushings that help reduce road noise while providing longevity. Fabtech’s Uniball Upper Control Arms are an excellent upgrade to stock or lifted suspension systems for drivers that demand the best for their vehicle. Features: Arms eliminate factory upper ball joint w/ super strong 1″ ID Stainless Steel American Uniball for increased suspension strength. Additional caster is built into Arms for enhanced align ability with oversized tires. 1.250″ OD .120″ wall 4130 Chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. 17-4 Stainless steel misalignments for proper clearance of large Uniballs throughout the travel range. 250 wall DOM bushing barrels with welded gussets for strength. Uniball Upper Control Arms.

Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
