Fabtech Coilovers – Dirt Logic 4.0 K2136DL

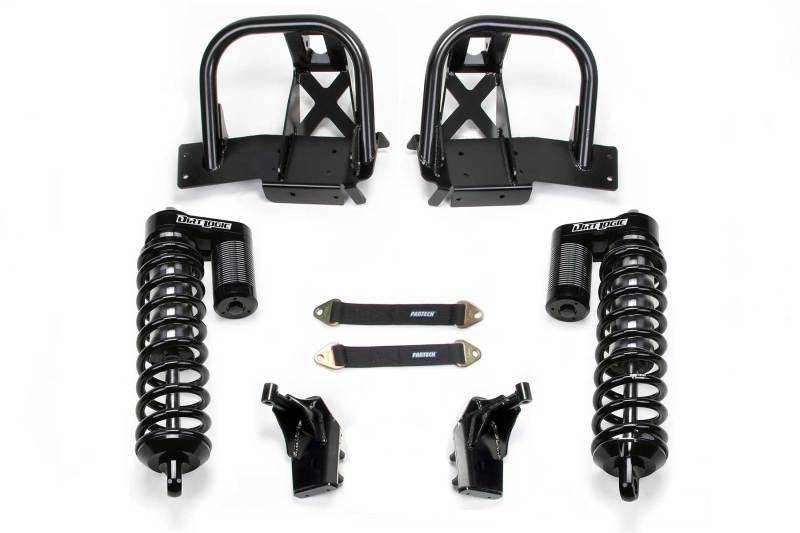

Fabtech 11-16 Ford F250/350 4WD 8in DL 4.0 Coilover Conversion System

8″ C/O CONV SYS DLSS

LftKt-Suspw/Shock

Fabtech steps out of the box with the release of our Coilover Shock conversion system for the ultimate Super Duty suspension upgrade. This Coilover conversion directly replaces the stock Coil Spring buckets with super stout gusseted 1 3/4 in. tubing for exceptional strength. This Coilover conversion system allows use of the Dirt Logic 4.0 Coilover Shocks. To complete this high end Coilover conversion opt for our hydraulic bump stops. This Coilover Shock System is compatible with our Radius Arm and 4 Link systems.

Obtain maximum front suspension damping for Super Duty’s with our Dirt Logic 4.0 Stainless Steel Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/4” thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Stainless Steel Coilover piggyback reservoir shocks.
