Fabtech Coilovers – Dirt Logic 4.0 FTS835237P

Fabtech 17-20 Ford F250/350 4WD Diesel 8in Front Dirt Logic 4.0 Reservoir Coilover – Passenger

4.0DLSS R/R 17 SD 8″

CoilOvr

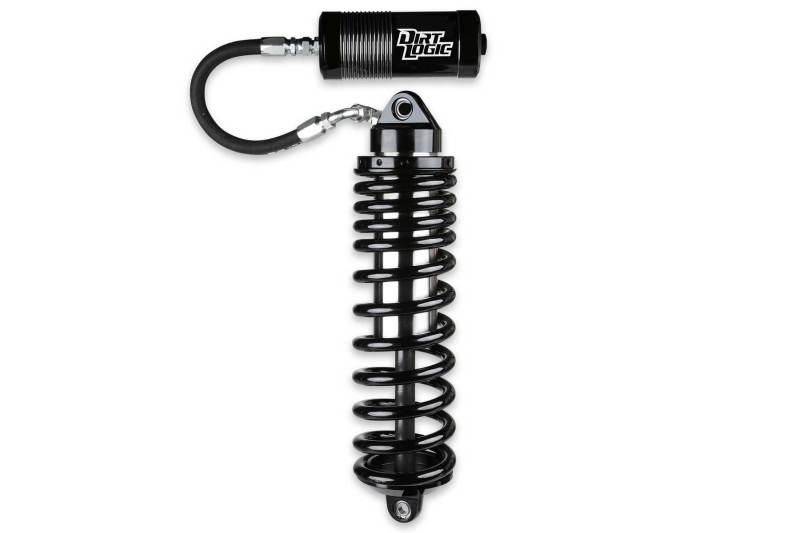

Dirt Logic 4.0 Resi Coilover. The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close. Features: 4.0″ OD Stainless Steel Body. 3 5/8″ OD Billet Aluminum Piston. 1 1/4″ NitroSteel Black Piston Rod. Cold Wound Coil Springs. Adjustable Coilover Construction. 3/4″ Spherical Ball Mounting Ends. 4.0″ OD Aluminum Remote Resi. Extended Length – E26.64. Collasped Length – C17.51. Stroke Length – S9.130. Top Mount – B2 . Bottom Mount – B1.

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
