Fabtech Coilovers – Dirt Logic 2.5 K7055DL

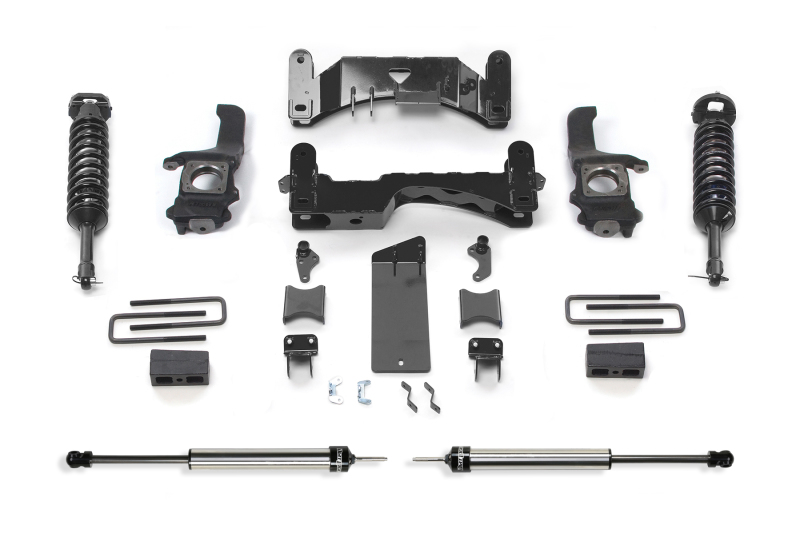

Fabtech 16-19 Toyota Tundra 2WD/4WD 6in Perf. System w/DL 2.5 Coiloverss & Rear DL Shocks

6″ PERF SYS W/DLSS 2

SuspFrontLvlKt

The 2.5 Lift system for late model 2013 3500 Rams, with Radius Arm front suspension, features more than just basic spacers. Dodge designed the front coil springs with a large bow to increase vehicle stability and handling. Unlike other flat spacers on the market, Fabtechs angled spacers retain this important feature preserving the factory ride characteristics. The front shocks are replaced with longer length units to allow for full suspension travel while improving the damping of the front suspension. Extended length bump stops are included in this kit to prevent the coil springs from binding at full compression while also eliminating Trac Bar interference.

Our Tundra systems feature extended length ductile iron steering knuckles that have been designed to operate within the factory steering geometry. This geometry provides proper turning radius with oversized tires and wheels. The factory lower control arms are relocated with high arched 1/4″ thick steel crossmembers with an integrated differential skid plate for protection against offroad obstacles. The factory front sway bar is retained and utilizes sway bar drops. The Performance system includes our Dirt Logic 2.5 Coilover shocks for aggressive offroad use with a good highway ride and utilizes a 3″ block and u-bolt system for rear lift.
