Fabtech Coilovers – Dirt Logic 2.5 K1069DL

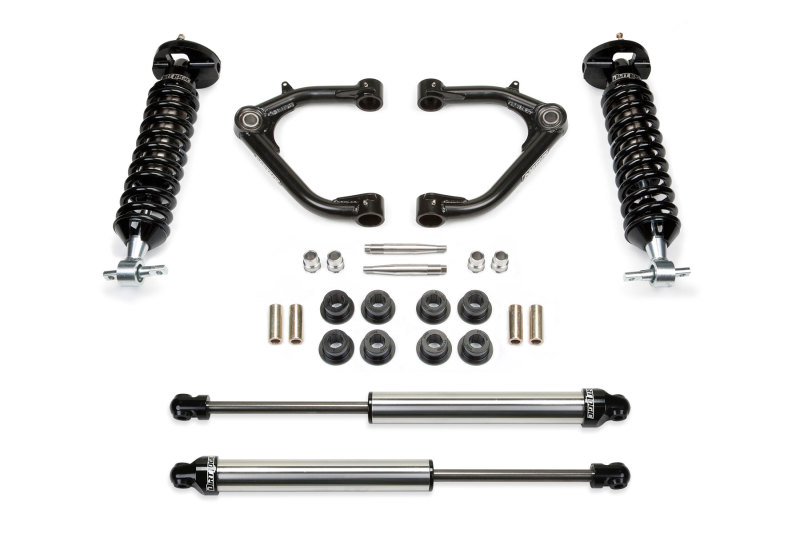

Fabtech 14-18 GM C/K1500 w/OE Alum. UCA 2in UCA System w/DL 2.5 Coilovers & Rear DL Shocks

2″ UCA KIT W/ DL 2.5

LftKt-Suspw/Shock

Arms eliminate upper ball joint w/ super strong 1″ ID Stainless American Uniball – Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments – Allows for increased wheel travel when used with Dirt Logic 2.5 Coilover shocks – Chromoly tubing reduces flex found in stock arms for more positive road feel – 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature – Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs. – Built with same materials as found on Trophy Trucks – .120″ Wall 4130 Chromoly Tubing. 1.50″ OD. – .250″ wall DOM Bushing Barrels – 1″ ID Stainless Steel American Uniball – 17-4 Stainless Misalignments – 17-4 Stainless Steel Heat treated Uniball pins.

Arms eliminate upper ball join w/super strong 1 ID stainless American uni-ball. Additional caster is build into arms for greater align ability to help with problematic leveling kit alignments. Allows for increase wheel travel when used with Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uni-ball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
