Fabtech Coilovers – Dirt Logic 2.5 FTS22191

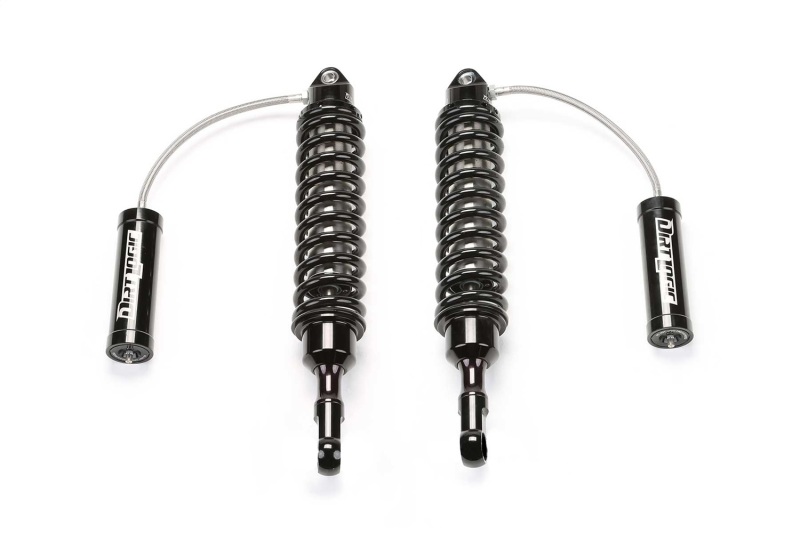

Fabtech 09-13 Ford F150 4WD 2in Front Dirt Logic 2.5 Reservoir Coilovers – Pair

2.5DLSS C/O RESI 09F

CntrlArmKit

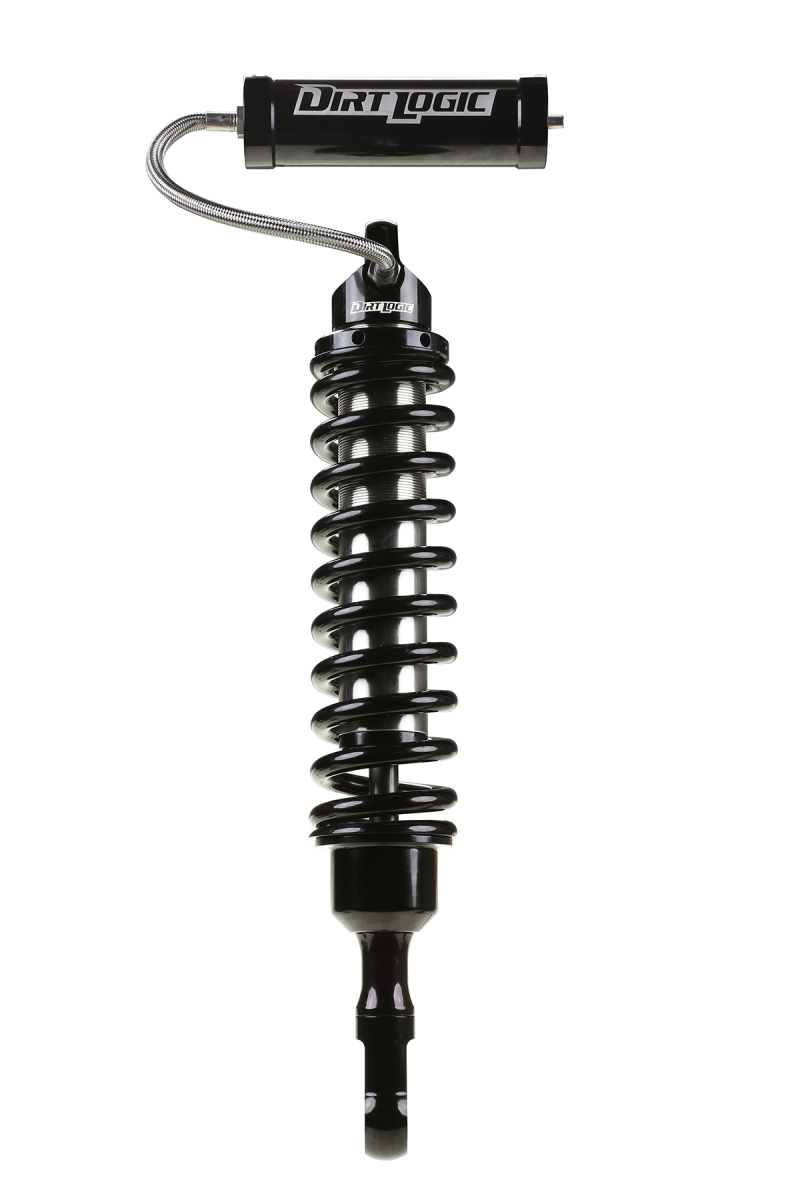

Dirt Logic 2.5 Resi Coilovers. From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving. Features: 2.5″ OD Stainless Steel Body. 2.25″ OD Billet Aluminum Piston. 7/8″ NitroSteel Black Piston Rod. Cold Wound Coil Springs. Adjustable Coilover Construction. 5/8″ Spherical Ball Mounting Ends. 2.50″ OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose. Extended Length – E23.21. Collasped Length – C17.96. Stroke Length – S5.25 . Top Mount – TP. Bottom Mount – B1.

Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
